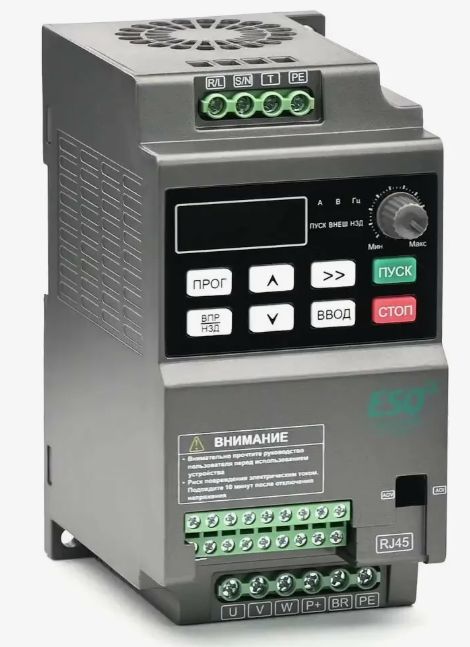

Каталог частотных преобразователей (инверторов) ESQ 230
| Артикул |
Название |
Мощность, кВт |
Ток, А |
Напряж, В |
|
| 08.04.304417 |
ESQ-230-2S-0.4K |
0,4 |
2,1 |
200-240 |
| 08.04.304418 |
ESQ-230-2S-0.7K |
0,75 |
4 |
200-240 |
| 08.04.304419 |
ESQ-230-2S-1.5K |
1,5 |
7 |
200-240 |
| 08.04.304420 |
ESQ-230-2S-2.2K |
2,2 |
9,6 |
200-240 |
| 08.04.304421 |
ESQ-230-2S-4K |
4 |
16,5 |
200-240 |
| 08.04.304422 |
ESQ-230-2S-5.5K |
5,5 |
20 |
200-240 |
| 08.04.304423 |
ESQ-230-4T-0.7K |
0,7 |
2,1 |
380-480 |
| 08.04.304424 |
ESQ-230-4T-1.5K |
1,5 |
3,8 |
380-480 |
| 08.04.304425 |
ESQ-230-4T-2.2K |
2,2 |
5,1 |
380-480 |
| 08.04.304426 |
ESQ-230-4T-4K |
4 |
9 |
380-480 |
| 08.04.304427 |
ESQ-230-4T-5.5K |
5,5 |
13 |
380-480 |
| 08.04.304428 |
ESQ-230-4T-7.5K |
7,5 |
17 |
380-480 |
| 08.04.304429 |
ESQ-230-4T-11K |
11 |
25 |
380-480 |
| 08.04.304430 |
ESQ-230-4T-15K |
15 |
32 |
380-480 |
| 08.04.304431 |
ESQ-230-4T-18.5K |
18,5 |
37 |
380-480 |
| 08.04.304432 |
ESQ-230-4T-22K |
22 |
45 |
380-480 |
| 08.04.304486 |
ESQ-230-4T-30K |
30 |
65 |
380-480 |
| 08.04.304487 |
ESQ-230-4T-37K |
37 |
80 |
380-480 |
| 08.04.304488 |
ESQ-230-4T-45K |
45 |
95 |
380-480 |
| 08.04.304489 |
ESQ-230-4T-55K |
55 |
118 |
380-480 |
| 08.04.304490 |
ESQ-230-4T-75K |
75 |
157 |
380-480 |
| 08.04.304491 |
ESQ-230-4T-90K |
90 |
180 |
380-480 |
| 08.04.304492 |
ESQ-230-4T-110K |
110 |
215 |
380-480 |
| 08.04.304493 |
ESQ-230-4T-132K |
132 |
232 |
380-480 |
| 08.04.304494 |
ESQ-230-4T-160K |
160 |
285 |
380-480 |
| 08.04.304495 |
ESQ-230-4T-185K |
185 |
326 |
380-480 |
| 08.04.304496 |
ESQ-230-4T-200K |
200 |
354 |
380-480 |
|
|
